星允派(stm32f103) （二）IIC通信OLED动态显示

meiyaolei

meiyaolei

160 0

使用STM32F103 的I2C 驱动 OLED 动态显示 的详细操作步骤，包含硬件连接、软件实现和动态显示优化方法。

1、原理图 STM32F103OLED屏连接引脚：

OLED屏连接引脚：

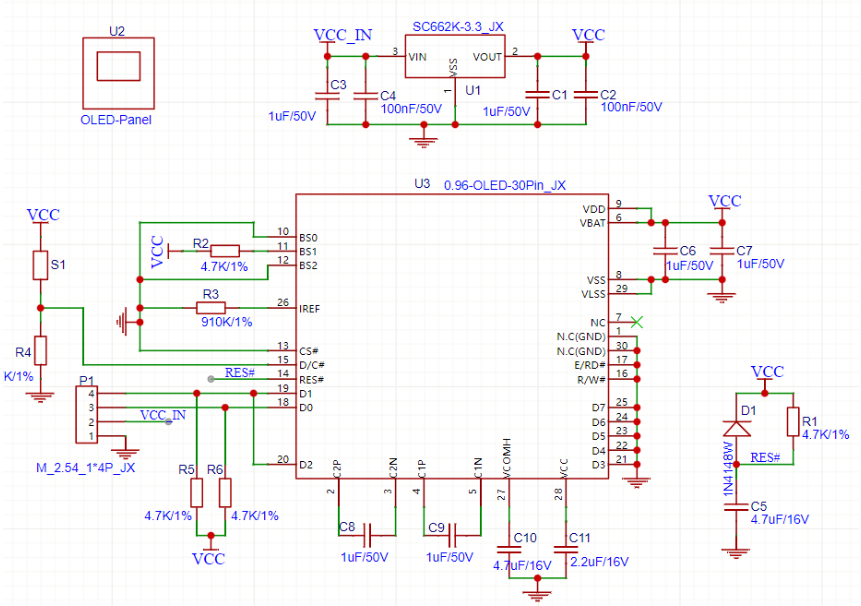

OLED参考图，个人以前画的图纸：

2、硬件

硬件了解

OLED 模块：通常使用 SSD1306 驱动芯片，I2C 接口（4 针：VCC、GND、SCL、SDA）。

STM32F103：使用 I2C1 或 I2C2（推荐 I2C1，PB3=SCL, PB5=SDA）。

电路连接：

OLED 的 SCL → STM32 的 PB3（I2C1_SCL）

OLED 的 SDA → STM32 的 PB5（I2C1_SDA）

OLED 的 VCC → 3.3V

OLED 的 GND → GND

上拉电阻：I2C 的 SDA 和 SCL 需要 4.7kΩ 上拉电阻（部分 OLED 模块已集成）。

SSD1306 是一款广泛用于单色 OLED 显示屏的控制器驱动芯片，以下是对其的详细介绍：

基本特性 显示类型：单色（通常为白色、蓝色或黄蓝双色）被动矩阵 OLED (PMOLED)。 分辨率：最大支持 128x64 像素，常见的模块有 128x64 (0.96英寸) 和 128x32 (0.91英寸)。 接口：支持多种通信接口，包括 I2C、SPI (3线或4线) 和并行接口。 内部 RAM (GDDRAM)：芯片内置图形显示数据 RAM (Graphic Display Data RAM)，大小通常为 128x64位 (1KB)。MCU 通过接口将要显示的像素数据写入 GDDRAM，SSD1306 负责根据 GDDRAM 的内容点亮屏幕上的像素点。 工作电压：逻辑电压通常为 3.3V 或 5V，但屏幕驱动电压可能需要内部电荷泵升压。

工作原理 控制方式：通过发送一系列命令来配置显示参数（如对比度、显示开关、地址模式等），并通过发送数据来更新 GDDRAM 内容。 页面结构：GDDRAM 通常按“页 (Page)”组织。对于 128x64 屏幕，通常分为 8 页 (Page 0 ~ Page 7)，每页包含 128 列 x 8 行像素 (128 bytes)。写入数据时，通常需要先设置目标页地址和列地址。 扫描与驱动：SSD1306 通过快速、分时地扫描 COM 线，并根据 GDDRAM 中的数据控制 SEG 线上的电平，来逐行（或逐页）点亮对应的像素。由于人眼的视觉暂留效应，我们感觉整个屏幕是同时亮的。

3、CUBEMX配置

PB3：Signal 为 n/a，GPIO 为 Output High，Maxi 为 No pull High，User L 为 OLED_SCL，Modified 为已勾选。 PB5：Signal 为 n/a，GPIO 为 Output High，Maxi 为 No pull High，User L 为 OLED_SDA，Modified 为已勾选。

Configuration配置区域 GPIO output level：设置为 High。 GPIO mode：设置为 Output Push Pull。 GPIO Pull-up/Pull-down：设置为 No pull-up and no pull-down。 Maximum output speed：设置为 High。 User Label：设置为 OLED_SCL、OLED_SDA。（这个是给IIC引脚自定的名字）

4、软件实现

//显示Hello World，Temperature和25.5C。
OLED_ShowString(0, 0, "Hello World!", 16, 0);
OLED_ShowString(0, 2, "Temperature:", 16, 0);
OLED_ShowString(80, 4, "25.5C", 16, 1);

//动态图代码
unsigned char BMP2[][294] = {
{ 0X32,0X01,0X00,0X30,0X00,0X30,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0XC0,0X00,0X00,0XFE,0XF8,0XE0,0XC0,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0XC0,0XF0,0XFE,0X3F,0X0F,0X3F,0X3E,0X3F,0X1F,0X07,0X1F,0XFF,0XFC,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X60,0XF0,0X10,0XC7,0X2F,0X0C,0XD8,0XD8,0X18,0XD8,0XD8,0XEC,0X27,0X13,0XF0,0X90,
0X60,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X1C,0X00,0X16,0X1F,0X01,0X08,0X0A,0X04,0X04,0X07,0X00,0X0F,0X01,0X19,0X12,0X12,
0X1C,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
},
{ 0X32,0X01,0X00,0X30,0X00,0X30,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0XC0,0X80,0X00,0X1E,0XF8,0XE0,0XC0,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0XC0,0XF0,0XFC,0X3F,0X0F,0X3F,0X3E,0X3F,0X1F,0X07,0XFF,0XFF,0XFC,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X60,0XF0,0X11,0XC7,0X2F,0X0C,0XD8,0XD8,0X18,0XD8,0XD8,0XEC,0X27,0X13,0XF0,0X90,
0X60,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X1C,0X00,0X16,0X1F,0X01,0X08,0X0A,0X04,0X04,0X07,0X00,0X0F,0X01,0X19,0X12,0X12,
0X1C,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
},
{ 0X32,0X01,0X00,0X30,0X00,0X30,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X80,0X80,0X00,0X0E,0XFC,0XE0,0XC0,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0XE0,0XF8,0XFC,0X1F,0X0F,0X3F,0X3E,0X3F,0X1F,0X07,0XFF,0XFF,0XFC,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X60,0XF0,0X11,0XC7,0X2F,0X0C,0XD8,0XD8,0X18,0XD8,0XD8,0XEC,0X2F,0X13,0XF0,0X90,
0X60,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X1C,0X00,0X16,0X1F,0X01,0X08,0X0A,0X04,0X04,0X07,0X00,0X0F,0X01,0X19,0X12,0X12,
0X1C,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
},
{ 0X32,0X01,0X00,0X30,0X00,0X30,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X80,0XC0,0X00,0X06,0XFC,0XF0,0XC0,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0XE0,0XF8,0XFE,0X1F,0X0F,0X3F,0X3E,0X3F,0X0F,0X07,0XFF,0XFF,0XF8,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X60,0XF0,0X11,0XC7,0X2F,0X0C,0XD8,0XD8,0X18,0XD8,0XD8,0XEC,0X2F,0X13,0XF0,0X90,
0X60,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X1C,0X00,0X16,0X1F,0X01,0X08,0X0A,0X04,0X04,0X07,0X00,0X0F,0X01,0X19,0X12,0X12,
0X1C,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
},
{ 0X32,0X01,0X00,0X30,0X00,0X30,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0XC0,0XE0,0X00,0X00,0XFE,0XE0,0XC0,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0XF0,0XF8,0XFE,0X1F,0X0F,0X3F,0X3F,0X3F,0X0F,0X0F,0XFF,0XFF,0X70,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X60,0XF0,0X11,0XC3,0X2F,0X0C,0XD8,0XD8,0X18,0XD8,0XD8,0XEC,0X2F,0X13,0XF0,0X90,
0X60,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X1C,0X00,0X16,0X1F,0X01,0X08,0X0A,0X04,0X04,0X07,0X00,0X0F,0X01,0X19,0X12,0X12,
0X1C,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
},
{ 0X32,0X01,0X00,0X30,0X00,0X30,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X80,0XC0,0XE0,0X00,0X00,0XFA,0XE0,0XC0,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0XF0,0XFC,0X7E,0X0F,0X1F,0X3F,0X3F,0X3F,0X0F,0X1F,0XFF,0XFE,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X60,0XF0,0X11,0XC3,0X2F,0X0C,0XD8,0XD8,0X10,0XD8,0XD8,0XEC,0X2F,0X13,0XF0,0X90,
0X60,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X1C,0X00,0X16,0X1F,0X01,0X08,0X0A,0X04,0X04,0X07,0X00,0X0F,0X01,0X19,0X12,0X12,
0X1C,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
},
{ 0X32,0X01,0X00,0X30,0X00,0X30,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X80,0XC0,0XE0,0X00,0X00,0XFA,0XE0,0X80,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0XF0,0XFC,0X7F,0X0F,0X1F,0X3F,0X3F,0X3F,0X0F,0X3F,0XFF,0XFE,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X60,0XF0,0X11,0XC3,0X2F,0X0C,0XD8,0XD8,0X10,0XD8,0XD8,0XEC,0X2F,0X13,0XF0,0X90,
0X60,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X1C,0X00,0X16,0X1F,0X01,0X08,0X0A,0X04,0X04,0X07,0X00,0X0F,0X01,0X19,0X12,0X12,
0X1C,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
},
{ 0X32,0X01,0X00,0X30,0X00,0X30,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X80,0XC0,0XF0,0X00,0X00,0XF1,0XE0,0X80,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0XF8,0XFC,0X3F,0X0F,0X1F,0X3F,0X3F,0X1F,0X0F,0X3F,0XFF,0XFC,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X60,0XF0,0X11,0XC3,0X2F,0X0C,0XD8,0XD8,0X10,0XD8,0XD8,0XEC,0X2F,0X13,0XF0,0X90,
0X60,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X1C,0X00,0X16,0X1F,0X01,0X08,0X0A,0X04,0X04,0X07,0X00,0X0F,0X01,0X19,0X12,0X12,
0X1C,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
},
{ 0X32,0X01,0X00,0X30,0X00,0X30,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0XC0,0XE0,0XF0,0X00,0X00,0XF1,0XC0,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0XF8,0XFE,0X3F,0X07,0X1F,0X3F,0X3F,0X3F,0X0F,0X3F,0XFF,0XF8,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X60,0XF0,0X11,0XC3,0X2F,0X0C,0XD8,0XD8,0X10,0XD8,0XD8,0XEC,0X2F,0X17,0XF0,0X90,
0X60,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X1C,0X00,0X16,0X1F,0X01,0X08,0X0A,0X04,0X04,0X07,0X00,0X0F,0X01,0X19,0X12,0X12,
0X1C,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
},
{ 0X32,0X01,0X00,0X30,0X00,0X30,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X80,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X80,0XC0,0XE0,0XF0,0X00,0X00,0XE0,0XC0,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0XFC,0XFE,0XFF,0X07,0X1F,0X3F,0X3F,0X3F,0X0F,0X3F,0XFE,0XF0,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X60,0XF0,0X10,0XC3,0X2F,0X0C,0XD8,0XD8,0X10,0XD8,0XD8,0XEC,0X2F,0X17,0XF0,0X90,
0X60,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X1C,0X00,0X16,0X1F,0X01,0X08,0X0A,0X04,0X04,0X07,0X00,0X0F,0X01,0X19,0X12,0X12,
0X1C,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
},
{ 0X32,0X01,0X00,0X30,0X00,0X30,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X80,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X80,0XC0,0XF0,0XB8,0X00,0X00,0XE0,0X80,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0XFC,0XFF,0XFF,0X07,0X1F,0X3F,0X3F,0X3F,0X1F,0X3F,0XFE,0XF0,0X80,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X60,0XF0,0X10,0XC3,0X2F,0X0C,0XD8,0XD8,0X10,0XD8,0XD8,0XEC,0X2F,0X17,0XF0,0X90,
0X60,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X1C,0X00,0X16,0X1F,0X01,0X08,0X0A,0X04,0X04,0X07,0X00,0X0F,0X01,0X19,0X12,0X12,
0X1C,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
},
{ 0X32,0X01,0X00,0X30,0X00,0X30,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0XC0,0XE0,0XF0,0X98,0X00,0X80,0XC0,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0XFC,0XFF,0XFF,0X07,0X0F,0X3F,0X7F,0X3F,0X1F,0X3F,0XFC,0XF0,0X80,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X60,0XF0,0X10,0XC3,0X2F,0X0C,0XD8,0XD8,0X10,0XD8,0XD8,0XEC,0X2F,0X17,0XF1,0X90,
0X60,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X1C,0X00,0X16,0X1F,0X01,0X08,0X0A,0X04,0X04,0X07,0X00,0X0F,0X01,0X19,0X12,0X12,
0X1C,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
},
{ 0X32,0X01,0X00,0X30,0X00,0X30,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0XC0,0XE0,0XF0,0X08,0X00,0X80,0X80,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0XFC,0XFF,0XFF,0X07,0X0F,0X3F,0X7F,0X3F,0X1F,0X3F,0XFC,0XF0,0XC0,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X60,0XF0,0X10,0XC3,0X2F,0X0C,0XD8,0XD8,0X10,0XD0,0XD8,0XEC,0X2F,0X17,0XF1,0X90,
0X60,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X1C,0X00,0X16,0X1F,0X01,0X08,0X0A,0X04,0X04,0X07,0X00,0X0F,0X01,0X19,0X12,0X12,
0X1C,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
},
{ 0X32,0X01,0X00,0X30,0X00,0X30,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0XC0,0XF0,0XF8,0X0C,0X00,0X80,0X80,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0XF8,0XFF,0XFF,0X07,0X0F,0X3F,0X7F,0X3F,0X1F,0X3E,0XF8,0XF0,0XC0,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X60,0XF0,0X10,0XC3,0X2F,0X0C,0XD8,0XD8,0X10,0XD0,0XD8,0XEC,0X2E,0X17,0XF1,0X90,
0X60,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X1C,0X00,0X16,0X1F,0X01,0X08,0X0A,0X04,0X04,0X07,0X00,0X0F,0X01,0X19,0X12,0X12,
0X1C,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
}
};

//显示动态图函数
void OLED_DrawBMP1(unsigned char x0,unsigned char y0,unsigned char x1,unsigned char y1,unsigned char BMP[])
{
    unsigned int j=0;
    unsigned char x,y;

  if(y1%8==0)
        y = y1/8;
  else
        y = y1/8 + 1;
    for(y=y0;y<y1;y++)
    {
        OLED_SetPos(x0,y);
    for(x=x0;x<x1;x++)
        {
            Write_IIC_Data(BMP[j++]);
        }
    }
}

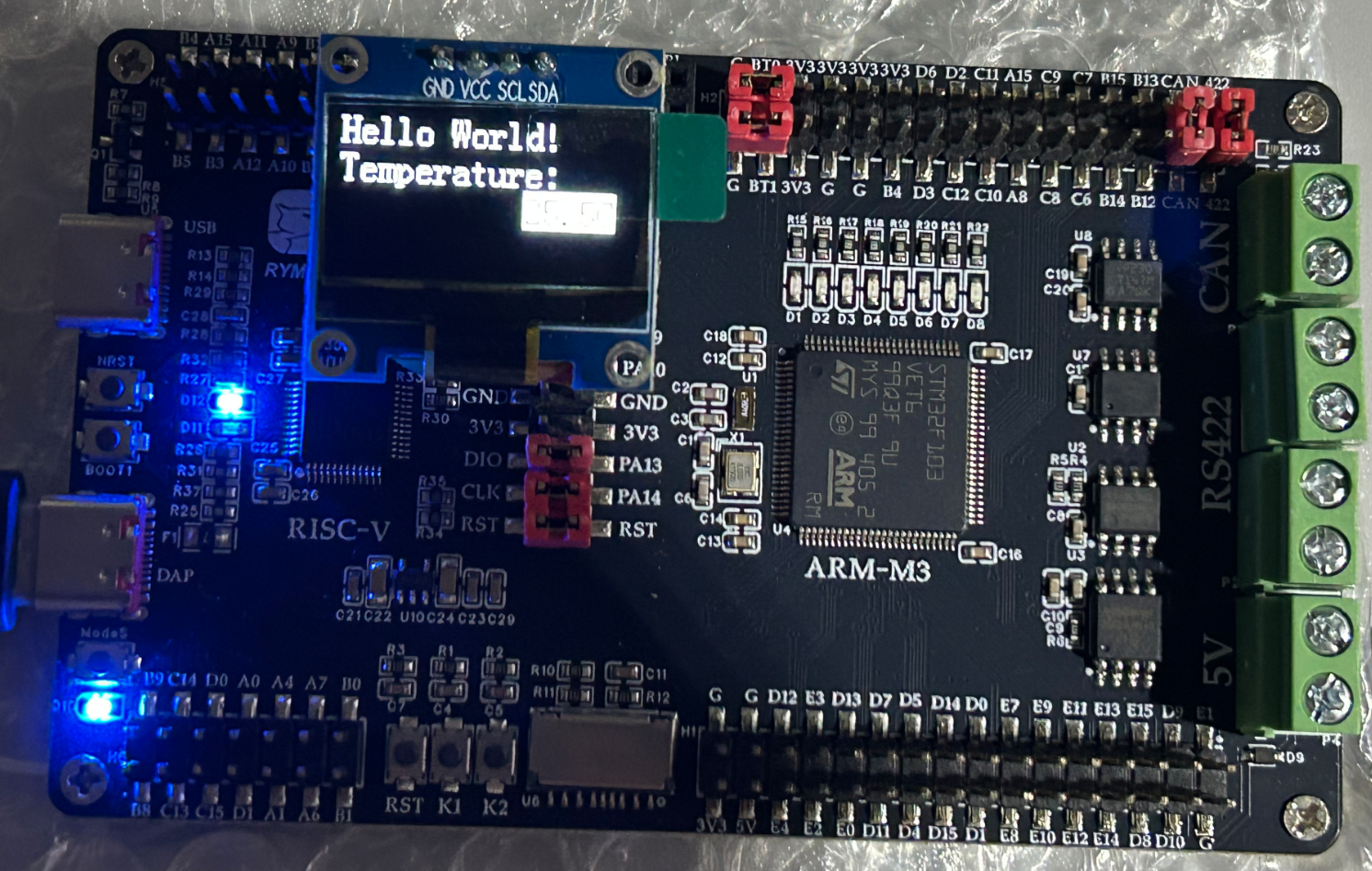

5、显示效果图 显示字条，没有反色的：

25.5C有反色的显示：

6、动态效果图：

相关文章

优先推荐同专题、同标签和同作者内容，补足热门文章。

星允派 F103 公测活动圆满收官！致敬每一位先行者！
同标签优先157 浏览

星允派 F103 公测活动圆满收官！致敬每一位先行者！

大家好！随着九月的到来，我们为期数周的 “星允派 F103”公测活动 正式画上了圆满的句号。在此，我们谨代表 RYMCU 社区，向所有热情参与、贡献智慧的公测先行者们，致以最诚挚的感谢！在过去的日子里，我们欣喜地看到，一块块 F103 开发板在大家手中从沉睡中被唤醒，点亮了第一盏灯，打印出第一行字符，驱动了第一个外设……每一篇文章、每一行代码，都凝聚着大家对嵌入式技术的热爱与探索精神，也为“星允派

ronger
2 赞1 评
星允派(NEBULA PI) [四] 软件I2C驱动SHT30
同标签优先42 浏览

星允派(NEBULA PI) [四] 软件I2C驱动SHT30

简介在最初拿到这块开发板时，我想用它驱动一些 I2C 传感器，但查看原理图后发现板上的硬件 I2C 接口已被占用，因此无法直接使用。这在使用体验上不够友好。在开发板设计阶段，建议将硬件 I2C 的对应引脚预留出来，以便用户扩展 I2C 设备。所以在最开始的时候我便放置起来的。 后来通过查看官方的教程手册进行进行确认。发现驱动 OLED 的代码也是通过软件 I2C 实现的。这样便是真的确定了没有 I

御坂10032号
0 赞0 评
星允派(nebula pi) -WA2812
同标签优先42 浏览

星允派(nebula pi) -WA2812

一、硬件WS2812 数据引脚WS2812 的 DI（数据输入）引脚需连接至 Nebula Pi 的可编程 GPIO 引脚 PA8。电源设计 WS2812 工作电压为 5V，需通过外部 5V 电源供电。封装与引脚连接方式连接示意图PCB 图二、软件配置这里主要是配置 PA8 引脚，使用的是定时器 1，实现具体的功能。三、代码while (1) { //流水效果

173163102
1 赞0 评
星允派(stm32f103) (四)驱动舵机
同标签优先71 浏览

星允派(stm32f103) (四)驱动舵机

一、功能描述使用 STM32F103 上使用 PA8 引脚控制舵机 SG90，通过 PWM 脉冲宽度调制实现。舵机通常需要 50Hz 周期 20ms 的 PWM 信号，脉冲宽度在 0.5ms（0°）~ 2.5ms（180°） 之间。二. 认识舵机1.硬件连接舵机信号线 → PA8（TIM1_CH1，STM32F103 的高级定时器）舵机 VCC → 外部电源（5V，建议单独供电，避免电流不足）舵机

meiyaolei
0 赞0 评
星允派(nebula pi) OLED
同标签优先43 浏览

星允派(nebula pi) OLED

认识一下什么是 OLED，和 IIC 通信，资料来自网络，只参考学习。一、OLED 技术详解OLED 核心特性OLED（Organic Light-Emitting Diode，有机发光二极管）是一种自发光显示技术，具有以下显著优势：自发光：无需背光源，黑色显示纯正，对比度极高（可达 100,000:1 以上）。结构轻薄：厚度仅为 LCD 的 1/3，可实现柔性曲面设计。视角广：接近 180° 无

173163102
0 赞0 评
星允派(nebula pi) AD电压采集
同标签优先39 浏览

星允派(nebula pi) AD电压采集

在星允派 Nebula Pi，使用 STM32F103 上进行 AD 电压采集，使用 ADC1。硬件确定采集引脚：选择 ADC1 的一个通道对应的 GPIO 引脚， PA（ADC1_IN0）。将需要采集的电压信号连接到该引脚。参考电压：确保芯片的参考电压（VREF+）稳定，通常连接到 3.3V 电源，VREF-接地。软件配置时钟配置使能 ADC1 时钟：在 STM32 的时钟控制寄存器中，使能 A

173163102
1 赞0 评

评论 0

登录 后参与评论

评论

成为第一个评论的人
